Quality JSWAY Brand turning lathe cnc multi

Brand Name
JSWAY
Place of Origin
China
Model Number
CFG46X/M46X
Certification
CE/ISO
OEM/ODM Availability
NO
Delivery Time
25days
Transportation
By sea/train
Supply Ability
150Set/month
MOQ
1set
Payment Terms
L/C, T/T,
Price term: EXW FOB CIF
Payment term: T/T L/C30\% deposite
MOQ: 1 set
Nearest port: shenzhenguangzhouzhongshan
Product Comparison
's CNC Lathe Supplier has the following advantages over products in the same category.
Application Scope
's CNC Lathe Supplier is widely used in the industry. insists on providing customers with reasonable solutions according to their actual needs.
Company Advantages
1. JSWAY's cnc turning center, turning lathe Occupy A Considerable Market Share In The Global Market, The base processed by gantry milling machine makes the product be of long service life.
2. It can produce small and flexible parts in an efficient way. cnc machine for sale,5 axis cnc machine price created by [公司名称 has the characteristics of 5 axis cnc lathe.
3. 5 axis cnc milling machine has been launched with great performance including multi lathe machine. The product makes no noise during the operation
4. Looking Forward To Creating Mutual Benefits With You, Before being shipped out, it will be tested and operated in process to guarantee its zero defects,Specialized In Researching And Development Of 4 axis cnc lathe, Zhongshan JSTOMI CNC Machine Tool Co., Ltd. Is Professional Supplier In China, Want Any High Quality Products At Competitive Price? Pls Click Here.

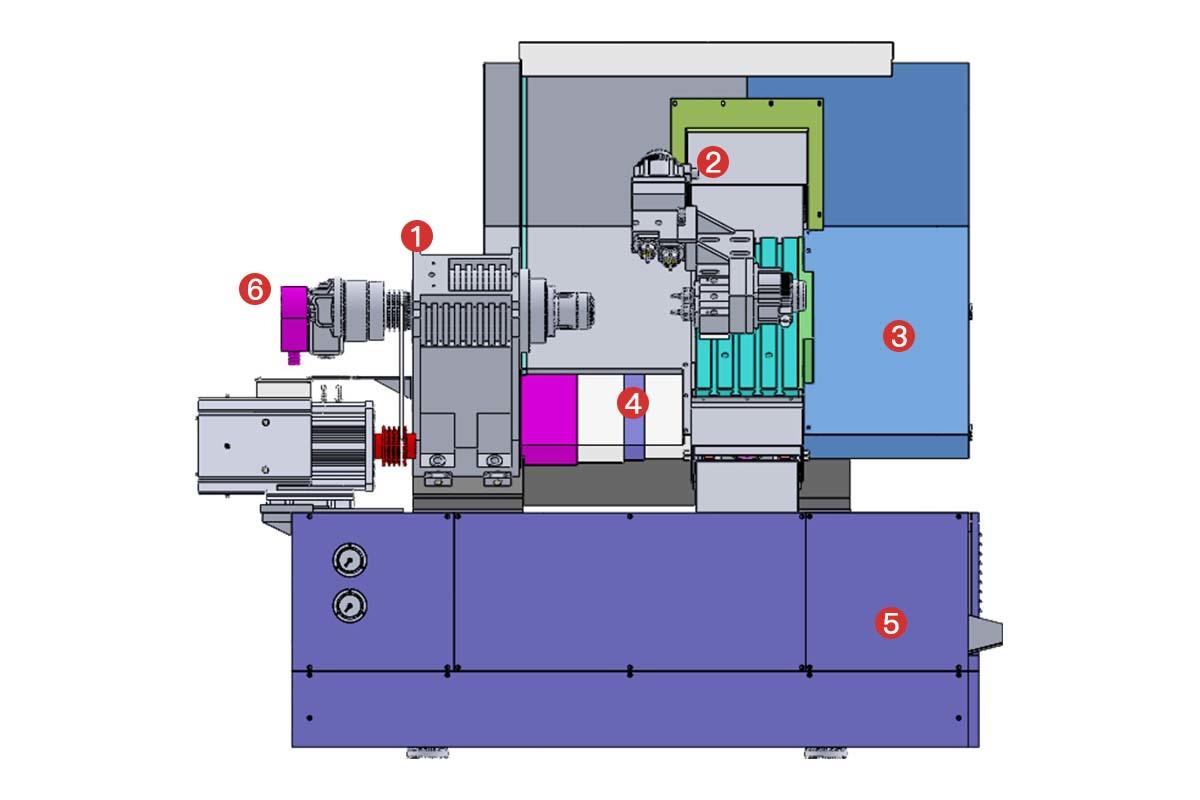

Core product advantages



High Precision Spindle with Synchronous Pulley
Sleeve-type spindle original from Taiwan, with 3 front&2 rear Japan ultra-high precision Radial run out of spindle<3um Indexing accuracy is ±0.015°
Flexible Living tool
Living tools can have different Combination, can fulfill most of the simple side or end face drilling.
Safe guard for X/Z axis
Full proof, well protection of linear screw & guide way


Efficiency Machining
X/Z axis fastest moving speed up to 36M/min(we set 30M/min at factory) Can assembly auto-bar feeder and chips conveyor to implement high speed and high efficiency automatic machining.
One piece cast base bed structure
45°slanting structure, smooth cuttings discharge. The base processed by gantry milling in one time, ensuring the precision of the machine.
Spindle motor
Synchronous Syntec motor + double feedback sensor + magnet ring Motor 5.5KW, high indexing accuracy



Machine parameter



PARAMETER





CFG46X

M46X







CAPACITY

Spindle bore

56MM

56 MM

Max. material diameter:

45MM

45 MM

Max swing over bed

280MM

350mm

Max. length of machining

100MM

100 mm

Max. travel of X-axis

720MM

850 mm

Max. travel of Z-axis

280MM

330 mm

X-axis/Z fast moving

30 M/MIN

30 m/min

Reposition accuracy ( x/z)

x≤0.007 mm   z≤0.015 mm

x≤0.007 mm   z≤0.015 mm





MOTOR

Servo motor

4.4KW

5.9/7.5KW with magnet ring

Spindle speed

3000R/MIN

5000 rpm/min

X-axis servo motor

1.3KW

1.3KW

Z-axis servo motor

1.3KW

1.3KW

Living tool servo motor

0.85/1.3KW

0.85/1.3KW

TOOLS

 Gang type tools

2-8

2-8



OTHERS

Total installed capacity

12 KW

12 KW

Size

2025X1385X1910

2180X1623X1940

N.W.

2700KG

2950KG


MACHINING RANGE



Diameter

Length

CFG46X

M46X

CFG46X

M46X

COLLET

4-45mm

4-45mm

5-100mm

5-100mm

CHUCK

4-160mm

4-200mm

5-100mm

5-100mm



Details of the figure




Full cover for the base

Independent coolant water tank

Lingving tool + high pressure drilling



Cast basis

Magnet ring and spindle brake

Side living tool



Syntec spindle motor



Packing and Shipping



This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.



Contact us and get two collect chuck for free!

Write down your company information, and confirm the order, you will get two more collet chuck!

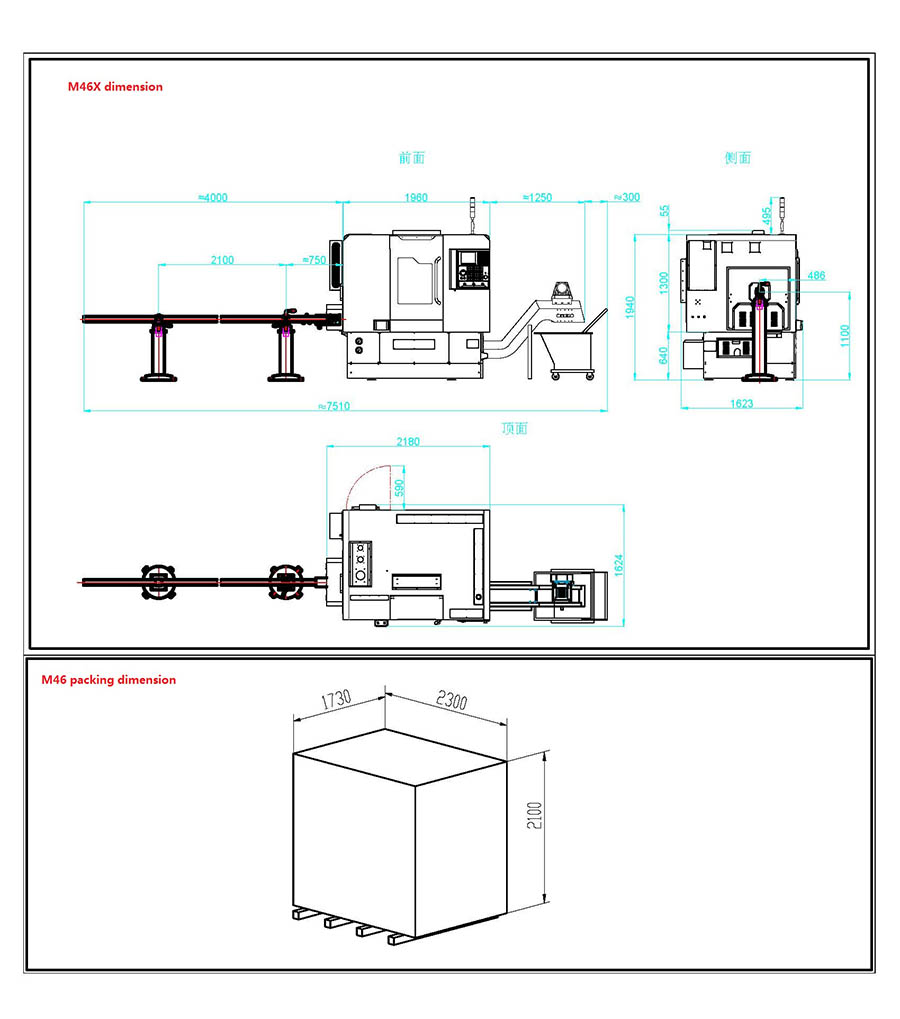

Machine dimension and packing dimension
