machine lathe big OEM swiss type lathe JSWAY

machine lathe big OEM swiss type lathe JSWAY
  • machine lathe big OEM swiss type lathe JSWAY
  • machine lathe big OEM swiss type lathe JSWAY
  • machine lathe big OEM swiss type lathe JSWAY
  • machine lathe big OEM swiss type lathe JSWAY

machine lathe big OEM swiss type lathe JSWAY

Brand Name
JSWAY
Place of Origin
China
Model Number
A366
Certification
CE/ISO
OEM/ODM Availability
NO
Delivery Time
25days
Transportation
By sea/train
Supply Ability
150Set/month
MOQ
1set
Payment Terms
L/C, T/T,
Price term: EXW FOB CIF
Payment term: T/T L/C30\% deposite
MOQ: 1 set
Nearest port: shenzhenguangzhouzhongshan
Application Scope
CNC machining can be used widely and meet the package requirements for various kinds of perfume.语句内容测试With rich manufacturing experience and strong production capability, is able to provide professional solutions according to customers' actual needs.
Company Advantages
1. swiss lathe from JSTOMI CNC Machine can be said as a upgraded version of high speed precision. The product can perform quick positioning
2. With a full protective cover, it can prevent the water from flowing into it. The offered swiss type lathe,cnc swiss machine items and furniture are manufactured using premium quality swiss type cnc lathe and sophisticated technology.
3. Its key parts are all purchased from Taiwan and Japan brand, making the product stable in performance. cnc swiss lathe,swiss style lathe reflects the innovative features such as swiss type automatic lathe.
4. It turns out to be effective that JSWAY has been always focusing on the service. Its axis runs very fast, which can guarantee the highly efficient automatic machining

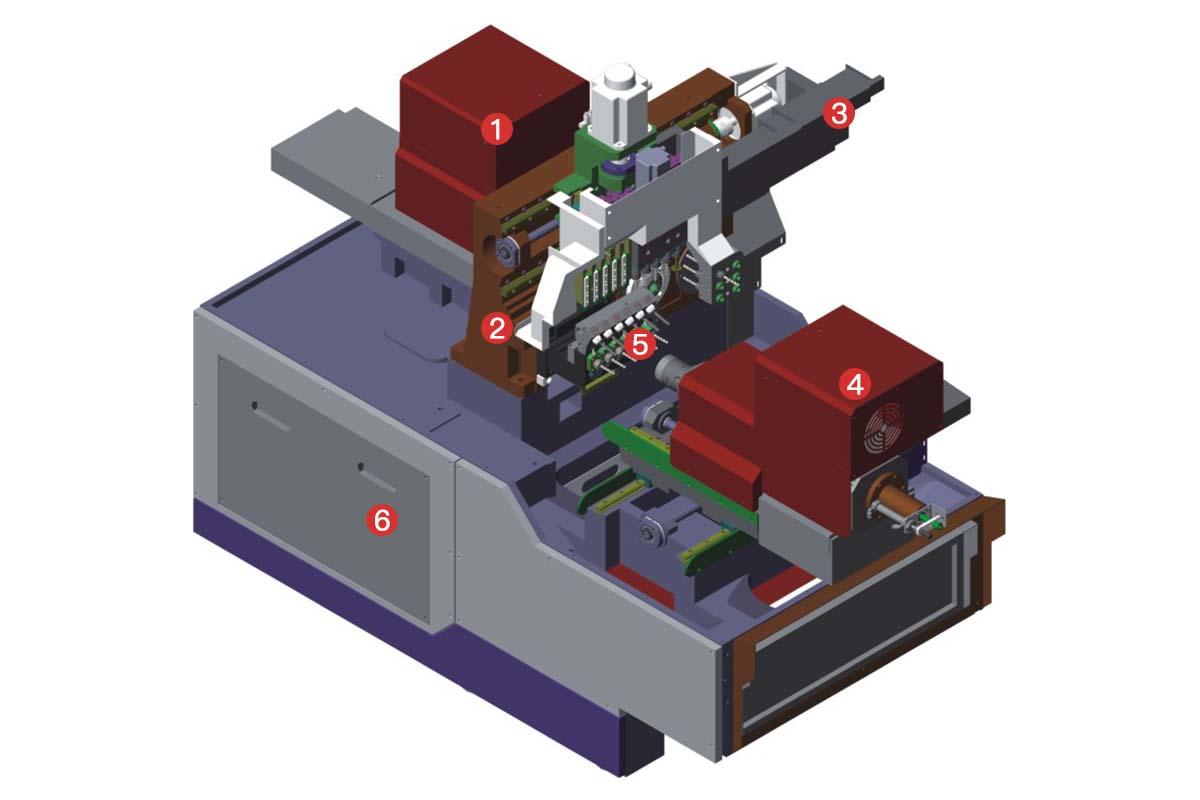

Core product advantages



Main spindle use mechanical spindle, so power for the bar of big diameter. Can have heavy cutting
Hydraulic chuck were use in this machine, more powerful than pneumatic spindle.
Double channel controller—syntec
Flexibility of living tool
Standard with S3 and Optional for S4 and S5


Twin spindle
Mainspindle and sub spindle can work at the same time. Greatly improve the efficiency.
High pressure coolant water
No difficulty for chips remover any more!
Spindle motor
Asynchronous Motor 5.5/7.5KW, accessory time 0 to 3500RPM only 1 second.



Machine parameter



PARAMETER

A366


CONTROLLER

System

Syntec

Syntec

rapid speed

36m/min(X:24m/min)

36m/min(X:24m/min)




PROCESSING RANGE


spindle clamping diameter

7-35mm

7-35mm

one time feeding material length

170mm

170mm

spindle max drilling diameter

14mm

14mm

spindle max tapping diameter

M8*P1.25

M8*P1.25

Max lateral drilling hole diameter

10mm

10mm




SPINDLE

S1  spindle power

4.4KW

4.4KW

S1 max speed

6000rpm

6000rpm

C1  indexing

0.015°

0.015°

spindle thru hole

36mm

36mm


SPINDLE TABLE STOKE

fixed sleeve

170mm

170mm

movable sleeve

170mm

170mm








TOOLS

cutting tools

6  tools 12*12 or 5 tool 16*16 (optional)

6  tools 12*12  or 5 tools 16*16(optional)

S3 lateral power tools

5 ER16 living tool

5 ER16 living tool

S3 lateral power tools Max speed.

6000rpm

6000rpm

S3 motor power

1.0KW

1.0KW

S5 end face tools

/

5 fixed ER16+3 movavle(optional)

S5 max drilling diameter

/

10mm

S5 Max. tapping diameter

/

M8*P1.25

S5 lateral tools Max speed

/

6000rpm

S5 motor power

/

1.0KW


POWER

Y1 Z1 servo motor

0.8KW

0.8KW

X1 servo motor

1.3KW

1.3KW

DIMENSION

Size( L x W x H )

1900*1300*1740mm

1900*1300*1740mm

N.W



3450KG

3500KG





Company Features
1. As a renowned swiss type lathe supplier, JSWAY excels in producing high quality cnc swiss lathe.
2. Our staff have developed expertise in Swiss lathe machine so much that we even handle unusual Swiss-style lathe jobs which are otherwise not possible easily.
3. Sticking to the principle of swiss type lathe has always been our pursuit goal. Get an offer!
