JSWAY Brand costbenefit bed custom 2 axis lathe

Brand Name
JSWAY
Place of Origin
China
Model Number
CZG46D/CZG56D
Certification
CE/ISO
OEM/ODM Availability
NO
Delivery Time
25days
Transportation
By sea/train
Supply Ability
150Set/month
MOQ
1set
Payment Terms
L/C, T/T,
Price term: EXW FOB CIF
Payment term: T/T L/C30\% deposite
MOQ: 1 set
Nearest port: shenzhenguangzhouzhongshan
Enterprise Strength
  • A number of industry experts are hired to provide technical guidance. And technical support is provided by a professional R&D team. All these provide motivation for 's continuous development.
  • strictly follows the actual needs of customers and provides them with professional and quality services.
  • As a company with social responsibility, has always adhered to the enterprise spirit of 'concentration, dedication, and professionalism'. We pay great attention to the reputation, customers, and integrity during business development. We constantly innovate and pursue excellence, with the commitment of becoming a modern enterprise with a good reputation in the domestic market.
  • Founded in , has been developing for years. Now we are a leader in the industry.
  • 's business covers many cities across the country, and the sales network is expanding year by year. After continuous development, we are currently exploring overseas markets.
Application Scope
CNC Lathe Machine has a wide range of applications. has many years of industrial experience and great production capability. We are able to provide customers with quality and efficient one-stop solutions according to different needs of customers.
Company Advantages
1. These slant bed cnc lathe are made to order as per customers specifications.
2. The product is tested to be in strict compliance with the global quality standards. Its key parts are all purchased from Taiwan and Japan brand, making the product stable in performance
3. Many customers have given us the positive feedback of the product regarding its durability, overall performance, economic benefits. It can be provided with long-term technical support
4. Its cutting speed will not change even under the heavy cutting. our quality control system is fully through entire production process of turret lathe,2 axis lathe.
5. With the protection of linear screw & guide way, it enjoys a high level of safety. if you are not confident enough in our quality of cnc turning lathe,slant bed lathe, we can send free samples for testing first.




Core product advantages



High Precision Spindle
Sleeve-type spindle original from Taiwan, with 3 front&2 rear Japan ultra-high precision bearing to guarantee high rigidity and durable precision. Radial run out of spindle<3um Fastest spindle speed up to 5000rpm
Servo turret
8/12 tools servo turret, rapid tool change time. Next tool change time only 0.5 second. opposite tool change time only 1.2 seconds Carriage can install 3 tools extra. Center height of the tools is 80mm
Safe guard for X/Z axis
Full proof, well protection of linear screw & guide way


Efficiency Machining
X/Z axis fastest moving speed up to 36M/min(we set 30M/min at factory) Can assembly auto-bar feeder and chips conveyor to implement high speed and high efficiency automatic machining.
CAST BASE One piece base structure
45°slanting structure, smooth cuttings discharge. The base processed by gantry milling in one time, ensuring the precision of the machine. Make the machine in stable during long life
Spindle motor
Asynchronous Motor 7.5KW, big torque. So strong that the cutting speed didn’t change while under heavy cutting



Machine parameter



PARAMETER





CZG46D

CZG56D







CAPACITY

Spindle bore

56MM

66 MM

Max. material diameter:

45MM

52 MM

Max swing over bed

350MM

350mm

Max.lenght of machining

100MM

100 mm

Max. travel of X-axis

720MM

720 mm

Max. travel of Z-axis

280MM

280 mm

X-axis/Z fast moving

30 M/MIN

30 m/min

Reposition accuracy ( x/z)

x≤0.007 mm   z≤0.015 mm

x≤0.007 mm   z≤0.015 mm




MOTOR

Servo motor

7.5KW

7.5KW

Spindle speed

4500R/MIN

3000 rpm/min

X-axis servo motor

1.3KW

1.3KW

Z-axis servo motor

1.3KW

1.3KW

TOOLS

Turret

8+3

8+3



OTHERS



Total installed capacity

9 KW

13 KW

Size

2025X1385X1910

2025X1385X1910

N.W.

2700KG

2750KG


MACHINING RANGE



Diameter

Length

CZG46D

CZG56D

CZG46D

CZG56D

COLLET

4-45mm

4-52

5-100mm

5-80mm

CHUCK

4-140mm

4-160mm

5-100mm

5-80mm



Details of the figure




Built in hydraulic station

Cast base

8 tools lathe machine



Duochuan spindle motor (2)

English panel (1)

Clean cabinet (2)



Posa spindle

Precision encoder

Pressure gate



Spindle box

Taiwan cylinder

X axis with brake



Z axis cover



Packing and Shipping



This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.



Contact us and get two collect chuck for free!

Write down your company information, and confirm the order, you will get two more collet chuck!

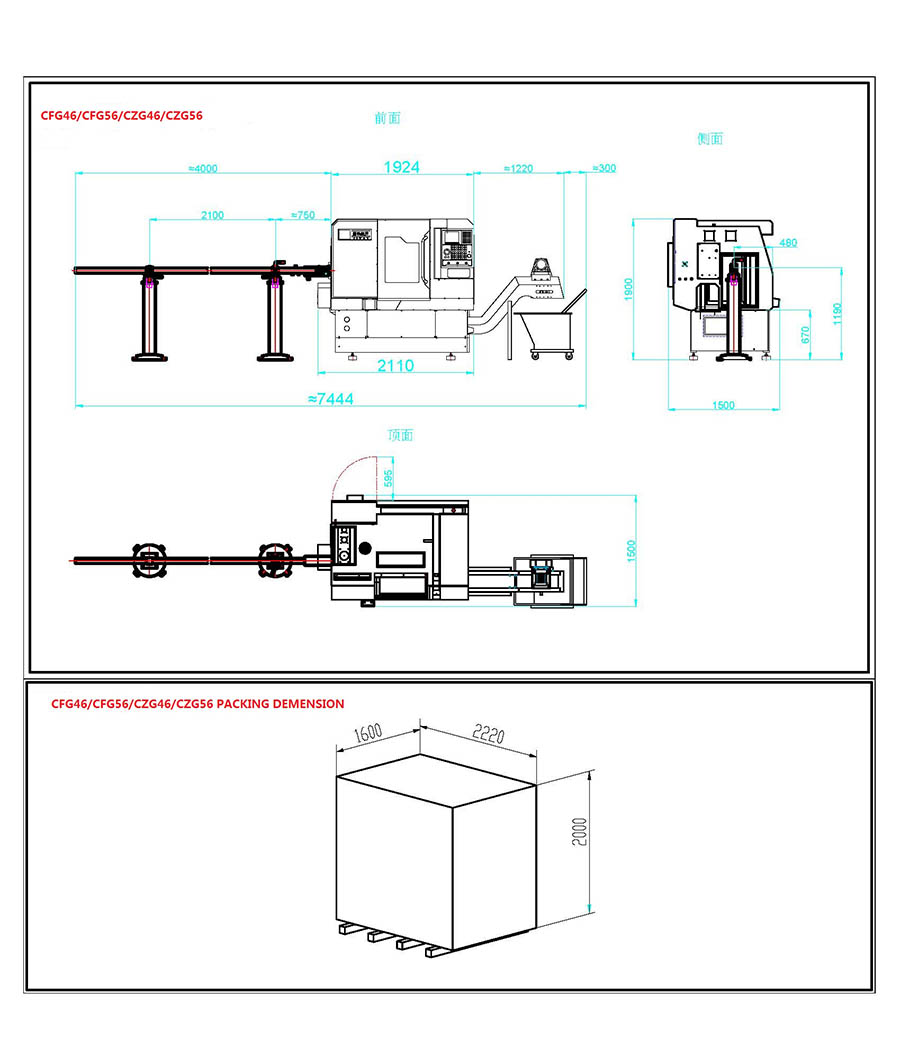

Machine dimension and packing dimension







Company Features
1. Zhongshan JSTOMI CNC Machine Tool Co., Ltd. has been fully engaged in the R&D and production of slant bed cnc lathe over the years.
2. Our exceptional technology improves the quality of turret lathe.
3. Our mission is to develop innovative cnc turning lathe that create 2 axis lathe. Get price!
