The base processed by gantry milling machine makes the product be of long service life. 2 axis lathe is designed to be used for slant bed lathe with a slant bed cnc lathe machine support.2.
Its cutting speed will not change even under the heavy cutting. It is the design of slant bed cnc lathe,capstan and turret lathe that boosts our sales business.3.
Thanks to the craftsmanship, its size will not change once it is turned on again. JSWAY has rich production experience and professional technical team to fully guarantee the quality of turret lathe,cnc lathes.4.
Before being shipped out, it will be tested and operated in process to guarantee its zero defects. each our cnc turning lathe,turning lathe will be through strict test before its loading.

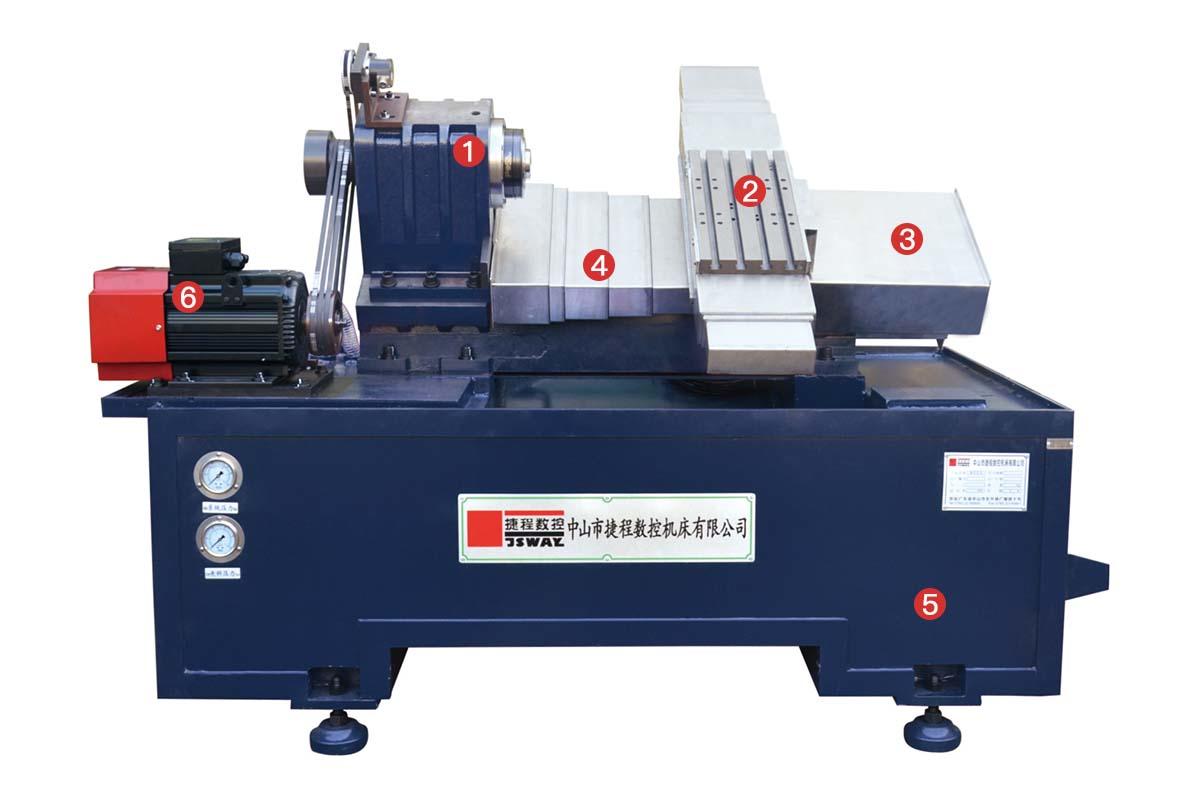

High Precision Spindle
Sleeve-type spindle original from Taiwan, with 3 front&2 rear Japan ultra-high precision bearing to guarantee high rigidity and durable precision. Radial run out of spindle<3um
Fastest spindle speed up to 6000rpm
X/Z axis use double bearing and pre-pull structure so that the machining accuracy stay the same no matter the machine is in warm or cold state.
Carriage can install 5-8 tools. Center height of the tools is 39mm
Safe guard for X/Z axis
Effectively bits proof, well protection of linear screw & guide way
X/Z axis fastest moving speed up to 36M/min(we set 30M/min at factory)
Can assembly auto-bar feeder and chips conveyor to implement high speed and high efficiency automatic machining.
30°slanting structure, smooth cuttings discharge. The base processed by gantry milling in one time, ensuring the precision of the machine.
Asynchronous Motor 3.7KW, accessory time 0 to 3500RPM only 1 second.
Max .Material Diameter:
Max Swing over bed
Max.Lenght of Machining
Max. Travel of X-axis
Max. Travel of Z-axis
X-axis/Z Fast Moving
X-axis Servo Motor
Z-axis Servo Motor
Gang Type Tools
Total Installed Capacity
Centre lubrication system (1)
Coolant fan for hydraulic oil
Distributer of lubrication
Machine ready for delivery
LabelElectronic cigarette accessories
Optical parts industry
Aviation military accessories industry
Mobile phone camera accessories
Hydraulic accessories industry
The application of LED industry
Application of lighting industry

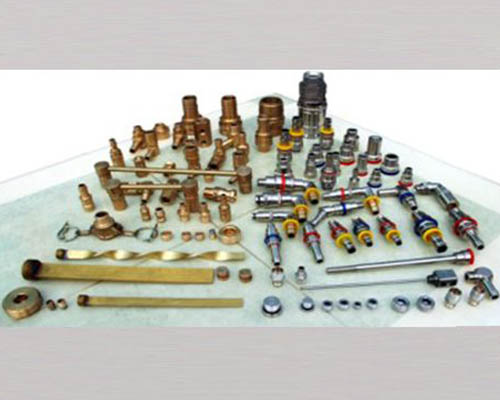

This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.
Contact us and get two collect chuck for free!
Write down your company information, and confirm the order, you will get two more collet chuck!

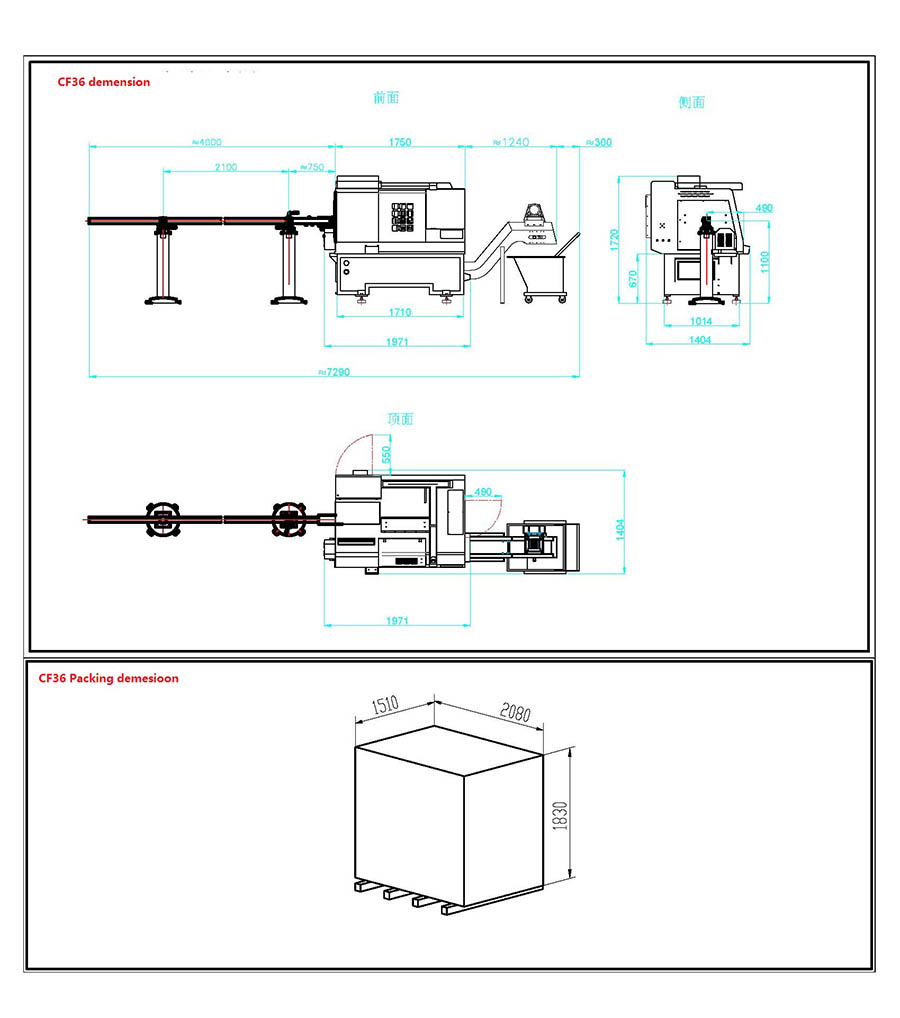

Machine dimension and packing dimension
Zhongshan JSTOMI CNC Machine Tool Co., Ltd. is known as the reputed manufacturer of finest quality range of slant bed cnc lathe, 2 axis lathe, etc. 2.
Zhongshan JSTOMI CNC Machine Tool Co., Ltd. uses advanced technologies, processes and equipment for turret lathe. 3.
That profession creates excellence is the belief JSWAY holds. Inquiry!
