aixs diameter lathe swiss type lathe big JSWAY

aixs diameter lathe swiss type lathe big JSWAY
  • aixs diameter lathe swiss type lathe big JSWAY
  • aixs diameter lathe swiss type lathe big JSWAY
  • aixs diameter lathe swiss type lathe big JSWAY
  • aixs diameter lathe swiss type lathe big JSWAY

aixs diameter lathe swiss type lathe big JSWAY

Brand Name
JSWAY
Place of Origin
China
Model Number
A365
Certification
CE/ISO
OEM/ODM Availability
NO
Delivery Time
25days
Transportation
By sea/train
Supply Ability
150Set/month
MOQ
1set
Payment Terms
L/C, T/T,
Price term: EXW FOB CIF
Payment term: T/T L/C30\% deposite
MOQ: 1 set
Nearest port: shenzhenguangzhouzhongshan
Enterprise Strength
  • has experienced professionals to guide product R&D and production, which provides a strong guarantee for the high quality of products.
  • offers technical training for customers freely. Moreover, we respond quickly to customer feedback and provide timely, thoughtful and high-quality services.
  • With the main focus on quality, strives for excellence and steady development. We think highly of integrity and sincerity, which is the foundation for us to gain mutual benefit. Strict quality control and focus on customers are of great importance to corporate development. We strive to build a first-class brand and become a leader in the industry.
  • Established in , has gone through a major change in the past years. We have accumulated rich experience in R&D, production, brand promotion, marketing, and team building.
  • has a sales network of CNC machining covering the whole country. It also covers many countries and regions, such as Europe, Africa, and America.
Product Comparison
's CNC Lathe Machine has the following advantages over other similar products.
Company Advantages
1. Made from high-quality swiss lathe, swiss type lathe has been the best selling product in JSWAY. With the protection of linear screw & guide way, it enjoys a high level of safety
2. The product can perform quick positioning. cnc swiss lathe,high speed precision is considered as the most promising cnc swiss machine because of its swiss type cnc lathe.
3. What's more, JSWAY also takes swiss style lathe into serious consideration to achieving a green living. Its cutting speed will not change even under the heavy cutting
4. Our offered Swiss lathe machine is well known in the market for featuring variegated attributes like high efficiency, consistent performance & low maintence cost. The product can be produced in large quantities in a short time
5. Any Feedback Will Be Highly Appreciated, It can be provided with long-term technical support,As A Professional Factory In China, Our Main Products Include All Kinds Of swiss type automatic lathe, Welcome Wholesale Orders.

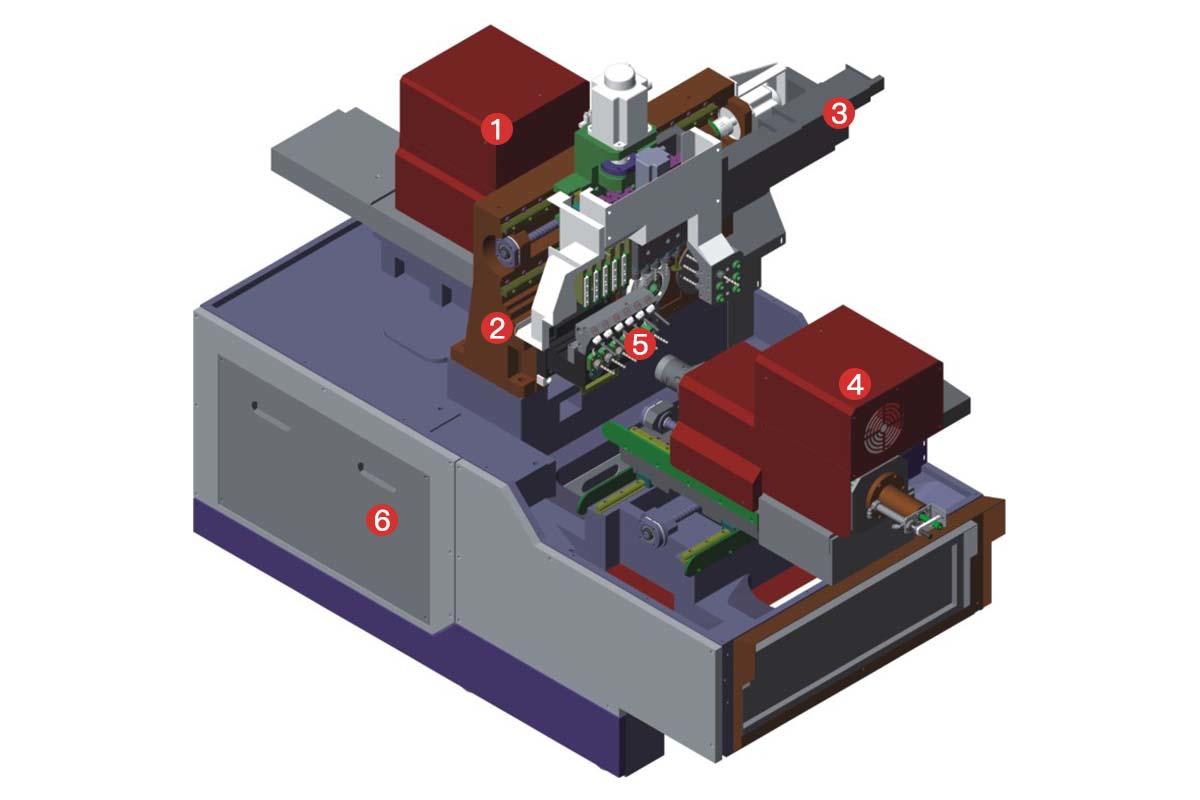

Core product advantages



Main spindle use mechanical spindle, so power for the bar of big diameter. Can have heavy cutting
Hydraulic chuck were use in this machine, more powerful than pneumatic spindle.
Double channel controller—syntec
Flexibility of living tool
Standard with S3 and Optional for S4 and S5


Twin spindle
Mainspindle and sub spindle can work at the same time. Greatly improve the efficiency.
High pressure coolant water
No difficulty for chips remover any more!
Spindle motor
Asynchronous Motor 5.5/7.5KW, accessory time 0 to 3500RPM only 1 second.



Machine parameter



PARAMETER

A363-5/A363-6


CONTROLLER

System

Syntec

Syntec

rapid speed

36m/min(X:24m/min)

36m/min(X:24m/min)




PROCESSING RANGE


spindle clamping diameter

7-35mm

7-35mm

one time feeding material length

170mm

170mm

spindle max drilling diameter

14mm

14mm

spindle max tapping diameter

M8*P1.25

M8*P1.25

Max lateral drilling hole diameter

10mm

10mm




SPINDLE

S1  spindle power

4.4KW

4.4KW

S1 max speed

6000rpm

6000rpm

C1  indexing

0.015°

0.015°

spindle thru hole

36mm

36mm


SPINDLE TABLE STOKE

fixed sleeve

170mm

170mm

movable sleeve

170mm

170mm








TOOLS

cutting tools

6  tools 12*12 or 5 tool 16*16 (optional)

6  tools 12*12  or 5 tools 16*16(optional)

S3 lateral power tools

5 ER16 living tool

5 ER16 living tool

S3 lateral power tools Max speed.

6000rpm

6000rpm

S3 motor power

1.0KW

1.0KW

S5 end face tools

/

5 fixed ER16+3 movavle(optional)

S5 max drilling diameter

/

10mm

S5 Max. tapping diameter

/

M8*P1.25

S5 lateral tools Max speed

/

6000rpm

S5 motor power

/

1.0KW


POWER

Y1 Z1 servo motor

0.8KW

0.8KW

X1 servo motor

1.3KW

1.3KW

DIMENSION

Size( L x W x H )

1900*1300*1740mm

1900*1300*1740mm

N.W



3450KG

3500KG





Company Features
1. As a top producer of swiss type lathe, Zhongshan JSTOMI CNC Machine Tool Co., Ltd. is very active and outstanding in this field.
2. Our offered are developed by our trained professionals employing high grade raw material according to industry norms.
3. Zhongshan JSTOMI CNC Machine Tool Co., Ltd. regards swiss lathe as our tenet. Welcome to visit our factory!
