Our slant bed cnc lathe is more in line with the modern green concept. Each accessory of the product is self-made, ensuring its machining precision2.
turret lathe uses a 2 axis lathe for easy slant bed lathe. The product has a high-gloss surface, showing an outstanding look.3.
Our entire product range reflects the creative designs and patterns and is manufactured under the supervision of experienced and dedicated professionals. The product is versatile, flexible and highly accurate4.
JSWAY is here to provide the best experience for cnc turning lathe consumers by offering quality products, services and outstanding support. The product has been exported to many oversea countries, like UK
High Precision Spindle
Sleeve-type spindle original from Taiwan, with 3 front&2 rear Japan ultra-high precision bearing to guarantee high rigidity and durable precision. Radial run out of spindle<3um
Fastest spindle speed up to 5000rpm
Z axis with leadscrew of 40mm, powerful & high speed
X/Z axis use double bearing and pre-pull structure so that the machining accuracy stay the same no matter the machine is in warm or cold state.
Carriage can install 5-8 tools. Center height of the tools is 60mm
Safe guard for X/Z axis
Full proof, well protection of linear screw & guide way
X/Z axis fastest moving speed up to 36M/min(we set 30M/min at factory)
Can assembly auto-bar feeder and chips conveyor to implement high speed and high efficiency automatic machining.
45°slanting structure, smooth cuttings discharge. The base processed by gantry milling in one time, ensuring the precision of the machine.
Asynchronous Motor 5.5/7.5KW, accessory time 0 to 3500RPM only 1 second.
Max. material diameter
Max swing over bed
Max.lenght of machining
Max. travel of X-axis
Max. travel of Z-axis
X-axis/Z fast moving
Reposition accuracy ( x/z)
x≤0.007 mm z≤0.015 mm
x≤0.007 mm z≤0.015 mm
X-axis servo motor
Z-axis servo motor
Gang type tools
Total installed capacity
Independent coolant water tank
Full cover fo the XZ axis
This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.
Contact us and get two collect chuck for free!
Write down your company information, and confirm the order, you will get two more collet chuck!

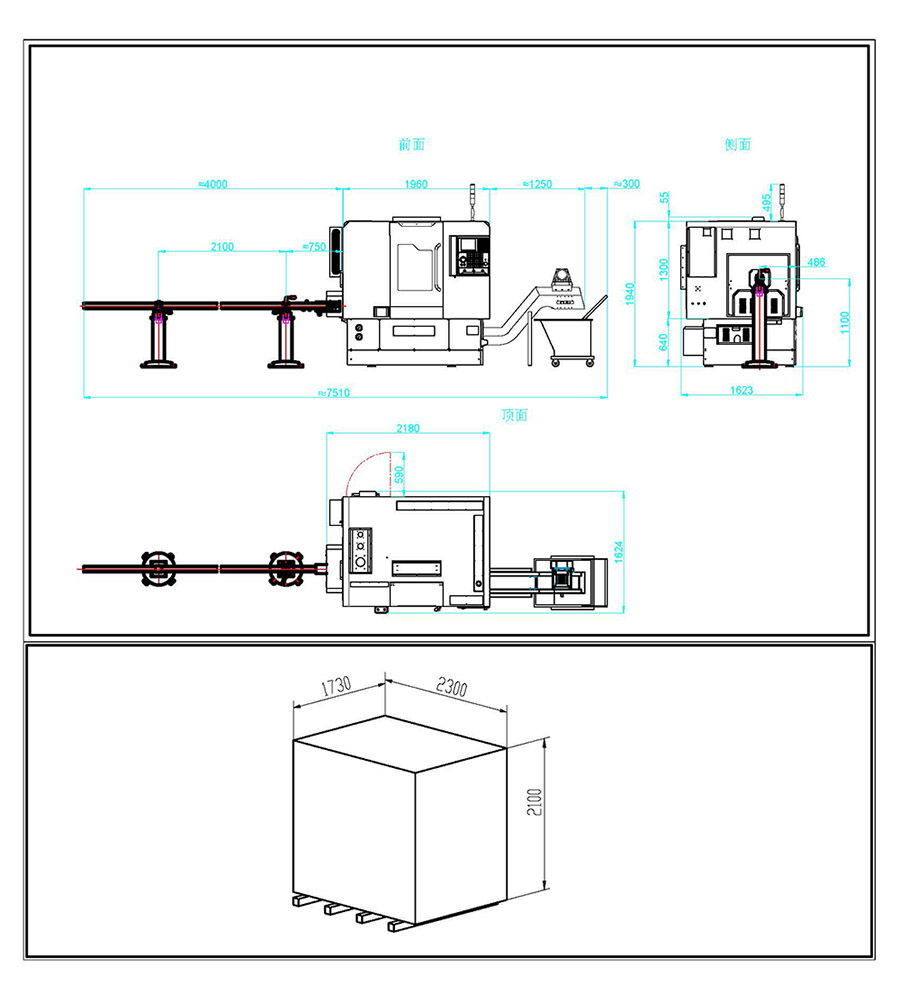

Machine dimension and packing dimension
