2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe

2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe
  • 2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe

2 axis lathe gang machine turning JSWAY Brand slant bed cnc lathe

Brand Name
JSWAY
Place of Origin
China
Model Number
CFG46D/CFG56D
Certification
CE/ISO
OEM/ODM Availability
NO
Delivery Time
25days
Transportation
By sea/train
Supply Ability
150Set/month
MOQ
1set
Payment Terms
L/C, T/T,
Price term: EXW FOB CIF
Payment term: T/T L/C30\% deposite
MOQ: 1 set
Nearest port: shenzhenguangzhouzhongshan
Company Advantages
1. JSWAY's slant bed cnc lathe, 2 axis lathe Is Well Accepted By Customers All Over The World With High-Quality, It can be offered at a favorable price.
2. Zhongshan JSTOMI CNC Machine Tool Co., Ltd. is in line with top-notch service and first-class product management concepts. Made by the high technology, the product meets the high international standard
3. The base processed by gantry milling machine makes the product be of long service life. turret lathe,slant bed lathe combines style, presence and exhilarating performance.
4. The performance index of cnc turning lathe is in the domestic leading position. The product is produced with a superior dynamic function

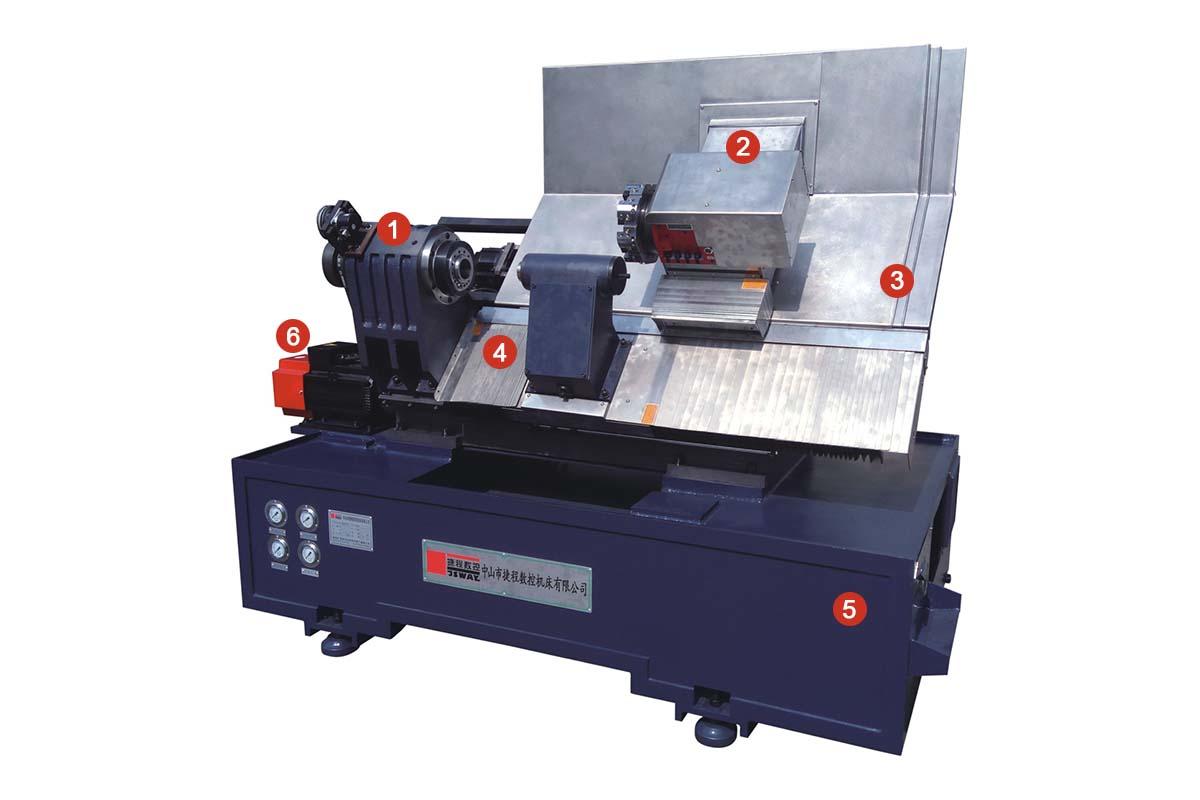

Core product advantages



High Precision Spindle
Sleeve-type spindle original from Taiwan, with 3 front&2 rear Japan ultra-high precision bearing to guarantee high rigidity and durable precision. Radial run out of spindle<3um Fastest spindle speed up to 5000rpm
Servo turret
8/12 tools servo turret, rapid tool change time. Next tool change time only 0.5 second. opposite tool change time only 1.2 seconds Carriage can install 5-8 tools. Center height of the tools is 60mm
Safe guard for X/Z axis
Full proof, well protection of linear screw & guide way


Efficiency Machining
X/Z axis fastest moving speed up to 36M/min(we set 30M/min at factory) Can assembly auto-bar feeder and chips conveyor to implement high speed and high efficiency automatic machining.
CAST BASE One piece base structureBed structure
45°slanting structure, smooth cuttings discharge. The base processed by gantry milling in one time, ensuring the precision of the machine.
Spindle motor
Asynchronous Motor 5.5/7.5KW, accessory time 0 to 3500RPM only 1 second.



Machine parameter



PARAMETER





CFG46D

CFG56D







CAPACITY

Spindle bore

56MM

66 MM

Max. material diameter:

45MM

52 MM

Max swing over bed

350MM

350mm

Max.lenght of machining

100MM

100 mm

Max. travel of X-axis

715MM

715 mm

Max. travel of Z-axis

280MM

280 mm

X-axis/Z fast moving

30 M/MIN

30 m/min

Reposition accuracy ( x/z)

x≤0.007 mm   z≤0.015 mm

x≤0.007 mm   z≤0.015 mm




MOTOR

Servo motor

5.5KW

7.5KW

Spindle speed

4500R/MIN

3000 rpm/min

 X-axis servo motor

0.85KW

1.3KW

Z-axis servo motor

0.85KW

1.3KW

TOOLS

 Gang type tools

6-8

6-8



OTHERS

Total installed capacity

9 KW

13 KW

Size

2025X1385X1910

2025X1385X1910

N.W.

2700KG

2750KG


MACHINING RANGE



Diameter

Length

CFG46

CFG56

CFG46

CFG56

COLLET

4-45mm

4-52

5-100mm

5-80mm

CHUCK

4-160mm

4-200mm

5-100mm

5-80mm



Details of the figure




8 tools lathe machine

Built in hydraulic station

Duochuan spindle motor (2)



English panel (1)

Clean cabinet (2)

Spindle box



Taiwan cylinder

X axis with brake

Z axis cover



Posa spindle

Precision encoder

Pressure gate



Packing and Shipping



This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.



Contact us and get two collect chuck for free!

Write down your company information, and confirm the order, you will get two more collet chuck!

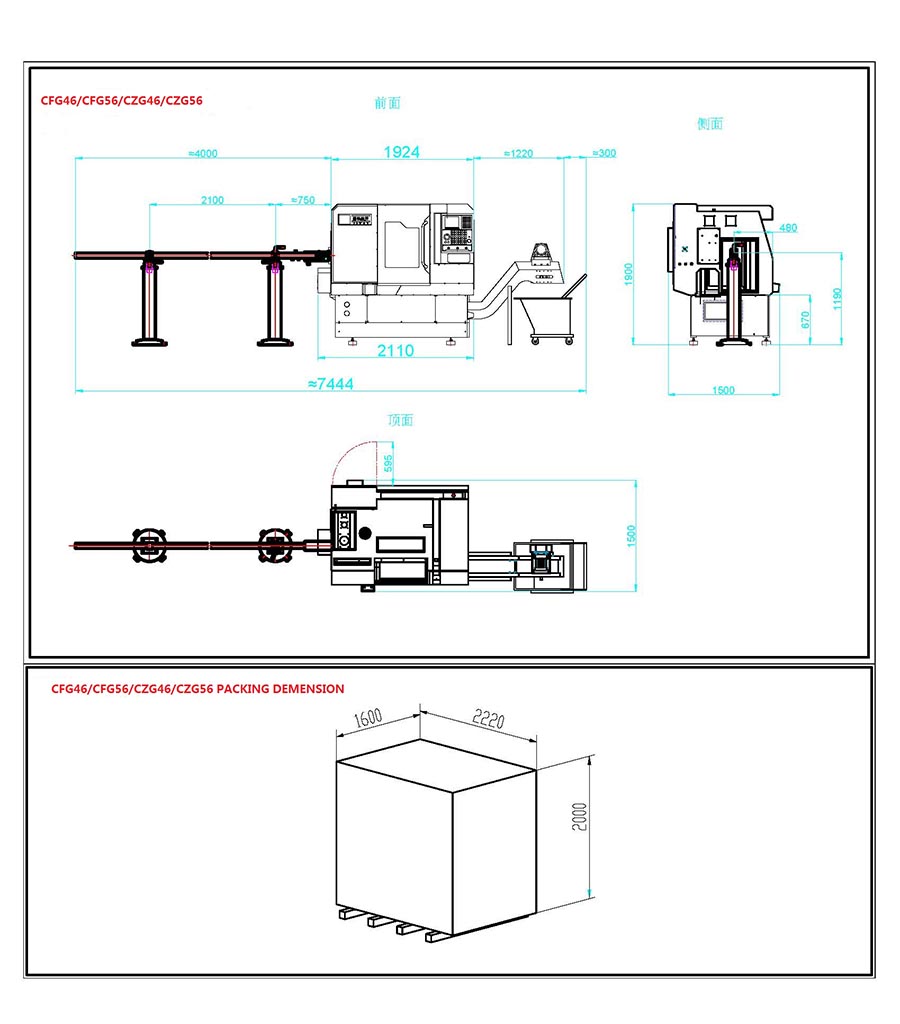

Machine dimension and packing dimension







Company Features
1. The JSWAY brand is quite good in slant bed cnc lathe manufacturing. Zhongshan JSTOMI CNC Machine Tool Co., Ltd. 's conformity to quality standards ensures our customers that our products and services are safe and of the highest quality.
2. A large number of employees at JSWAY have been dedicated to product research, design and application development.
3. Zhongshan JSTOMI CNC Machine Tool Co., Ltd. offers the full range of turret lathe capabilities. Zhongshan JSTOMI CNC Machine Tool Co., Ltd. intends to give superior service to every customer. Welcome to visit our factory!
