2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand

2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand
  • 2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand

2 axis lathe cnc torno slant bed cnc lathe JSWAY Brand

Brand Name
JSWAY
Place of Origin
China
Model Number
CFG46/CFG56
Certification
CE/ISO
OEM/ODM Availability
NO
Delivery Time
25days
Transportation
By sea/train
Supply Ability
150Set/month
MOQ
1set
Payment Terms
L/C, T/T,
Price term: EXW FOB CIF
Payment term: T/T L/C30\% deposite
MOQ: 1 set
Nearest port: shenzhenguangzhouzhongshan
Product Details
strives excellent quality by attaching great importance to details in the production of CNC machining.
Product Comparison
's CNC machining has been further improved based on advanced technology, as reflected in the following aspects.
  • v s
Company Advantages
1. Its axis runs very fast, which can guarantee the highly efficient automatic machining. 2 axis lathe is JSWAY latest new product with high performance.
2. This well recognized product is known for excellent quality and reliable performance. Thanks to the craftsmanship, its size will not change once it is turned on again
3. slant bed cnc lathe is of high tensile strength, and is not prone to deformation. In addition, it has excellent aging resistance to avoid cracking.
4. Its key parts are all purchased from Taiwan and Japan brand, making the product stable in performance. JSWAY has a complete set of design, production and service quality guarantee system.
5. The cutting performed by the product is very smooth. JSWAY has established a strong brand competitive advantage.

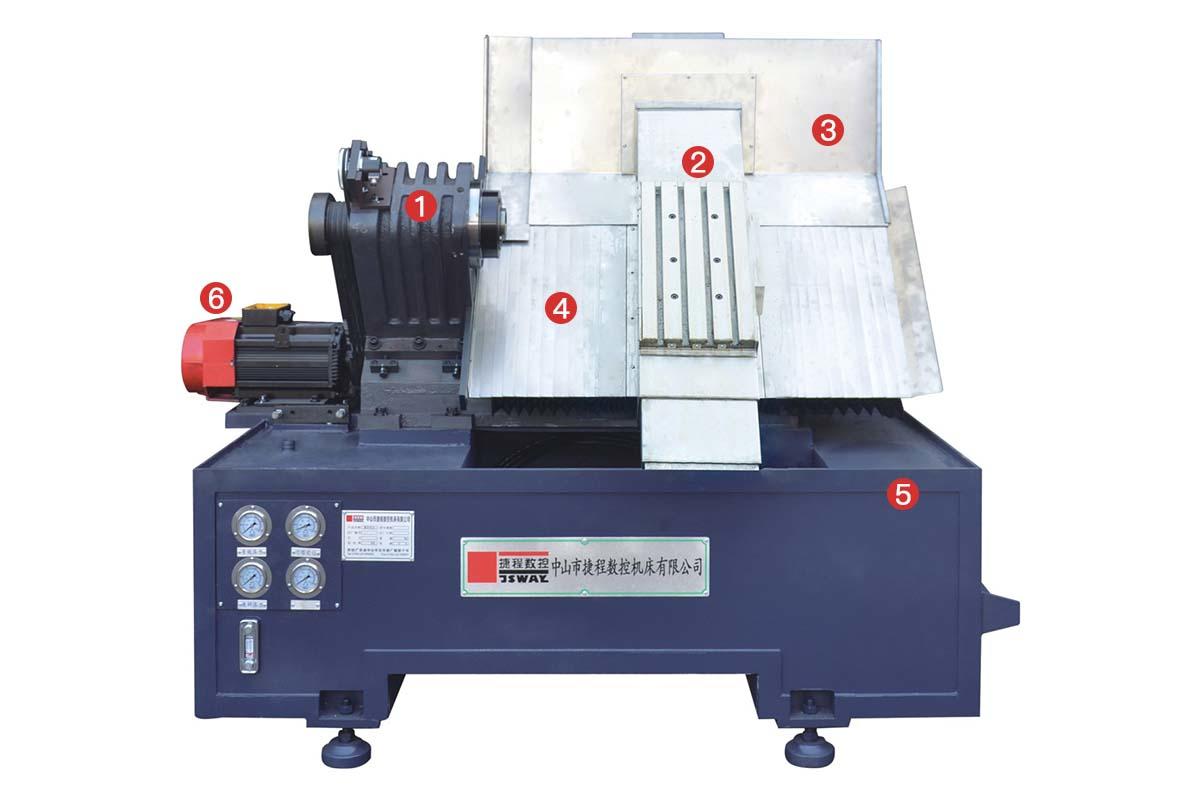

Core product advantages



High Precision Spindle
Sleeve-type spindle original from Taiwan, with 3 front&2 rear Japan ultra-high precision bearing to guarantee high rigidity and durable precision. Radial run out of spindle<3um Fastest spindle speed up to 5000rpm
Carriage
Z axis with leadscrew of 40mm, powerful & high speed X/Z axis use double bearing and pre-pull structure so that the machining accuracy stay the same no matter the machine is in warm or cold state. Carriage can install 5-8 tools. Center height of the tools is 60mm
Safe guard for X/Z axis
Full proof, well protection of linear screw & guide way


Efficiency Machining
X/Z axis fastest moving speed up to 36M/min(we set 30M/min at factory) Can assembly auto-bar feeder and chips conveyor to implement high speed and high efficiency automatic machining.
Bed structure
45°slanting structure, smooth cuttings discharge. The base processed by gantry milling in one time, ensuring the precision of the machine.
Spindle motor
Asynchronous Motor 5.5/7.5KW, accessory time 0 to 3500RPM only 1 second.



Machine parameter



PARAMETER








CAPACITY




CFG46

CFG56

Spindle bore

56MM

66 MM

Max. material diameter:

45MM

52 MM

Max swing over bed

350MM

350mm

Max.lenght of machining

100MM

100 mm

Max. travel of X-axis

715MM

715 mm

Max. travel of Z-axis

280MM

280 mm

X-axis/Z fast moving

30 M/MIN

30 m/min

Reposition accuracy ( x/z)

x≤0.007 mm   z≤0.015 mm

x≤0.007 mm   z≤0.015 mm




MOTOR

Servo motor

5.5KW

7.5KW

Spindle speed

4500R/MIN

3000 rpm/min

 X-axis servo motor

0.85KW

1.3KW

Z-axis servo motor

0.85KW

1.3KW

TOOLS

 Gang type tools

6-8

6-8



OTHERS

Total installed capacity

9 KW

13 KW

Size

2025X1385X1910

2025X1385X1910

N.W.

2700KG

2750KG


MACHINING RANGE



Diameter

Length

CFG46

CFG56

CFG46

CFG56

COLLET

4-45mm

4-52

5-100mm

5-80mm

CHUCK

4-160mm

4-200mm

5-100mm

5-80mm



Details of the figure




China cnc machine

China machine

Clean cabinet



Duochuan spindle motor

English panel (1)

Lathe machine cnc



Taiwan cylinder

X axis with brake

Z axis cover



Posa spindle

Pressure gate



Packing and Shipping



This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.



Contact us and get two collect chuck for free!

Write down your company information, and confirm the order, you will get two more collet chuck!

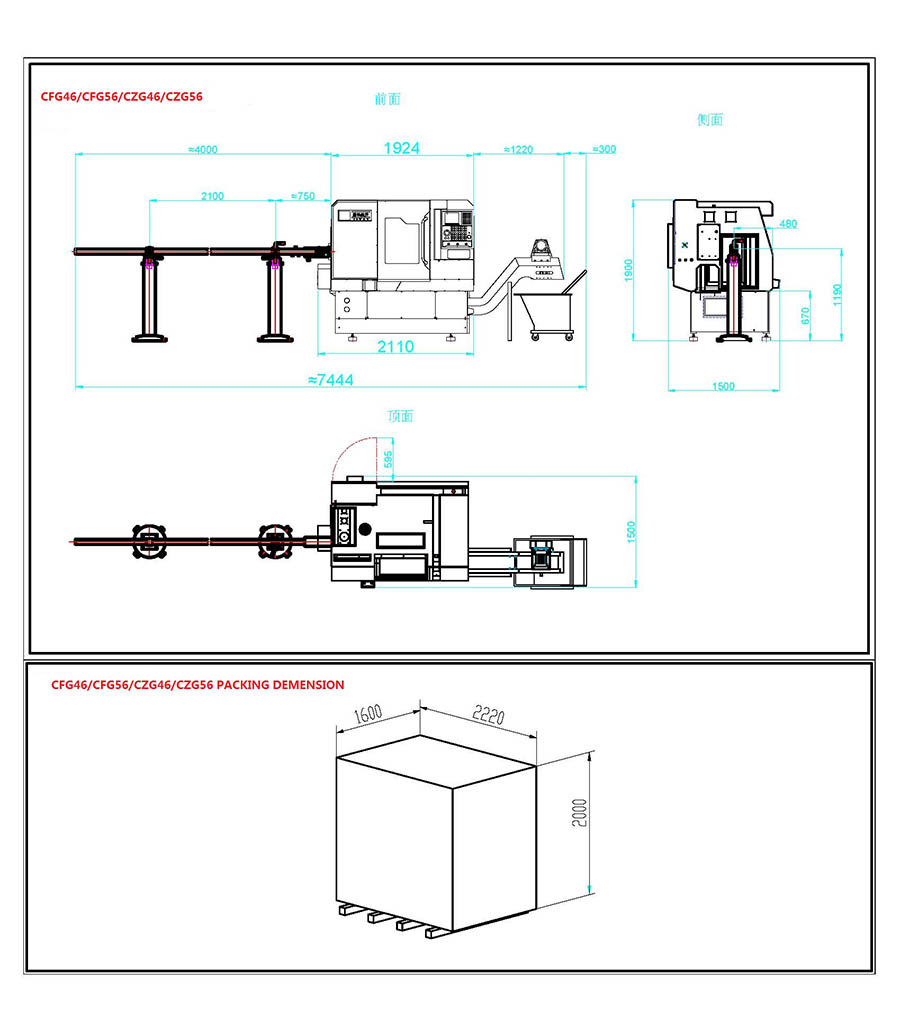

Machine dimension and packing dimension







Company Features
1. As a large producer of slant bed cnc lathe, Zhongshan JSTOMI CNC Machine Tool Co., Ltd. occupies a large market share.
2. A Good Husband Makes A Good Wife. JSWAY Is A Professional Factory Which Manufactures Various Kinds Of High Quality turret lathe, 2 axis lathe, slant bed lathe. Welcome To Visit Our Factory!
3. Based on the policy of cnc turning lathe, JSWAY strives to be a more competitive enterprise. Welcome to visit our factory!
